Features
The first SX-series camera with an OLED EVF
Whether you are shooting telephoto or wide-angle, the 0.39-inch, 2.36-million dot high-definition OLED EVF provides a clear view of your shot—all the better for framing and composition. The large grip ensures a firm, stable hold on the camera, reducing camera shake for sharper, steadier images. Feel like a pro, shoot like a pro.
Up to 10 fps continuous shooting
Need a speed boost when capturing fast-moving subjects? The EC805 lets you shoot up to 10 frames per second (fps) with AF lock (One-Shot AF), and up to 5.7 fps while tracking moving subjects via Servo AF. Pair this with the super-telephoto capabilities for an enhanced sports and wildlife photography experience.
Dual Sensing IS with up to 5 stops’ image stabilization
Dual Sensing IS uses data on camera shake from the image sensor and gyro sensors on the lens to precisely counteract camera shake by up to as much as 5 shutter speed stops. This effectively corrects image blurring caused not only by high–frequency vibrations such as hand movement, but also deeper, lower-frequency vibrations resulting from body movement during breathing, etc. A powerful feature that is immensely useful when shooting at super telephoto focal lengths.
Specifications
Image Capture Device
| Type |
20.3 Megapixel*, 1/2.3-inch CMOS |
| * Image processing may cause a decrease in the number of pixels. |
| Total Pixels |
Approx. 21.1 Megapixels |
| Effective Pixels |
Approx. 20.3 Megapixels |
Lens
| Focal Length |
3.8 (W) – 247.0 (T) mm (35mm film equivalent: 21-1365mm) |
| Optical Zoom |
65x |
| Digital Zoom |
4.0x |
| Focusing Range |
Auto: 0.0 in (0 cm) – infinity (W), 5.9 ft. (1.8 m) – infinity (T)
Normal: 2.0 in. (5cm) – infinity (W), 5.9 ft. (1.8m) – infinity (T) |
| Macro 0.0 in. (0 cm) – 1.6 ft. (50 cm) (W) |
| Autofocus System |
TTL Autofocus |
Viewfinders
| Optical Viewfinder |
Electronic Viewfinder (Approx. 2,360,000 dots) |
| LCD Monitor |

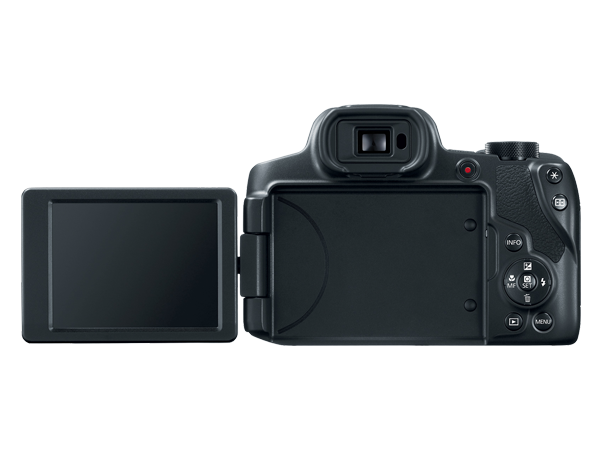

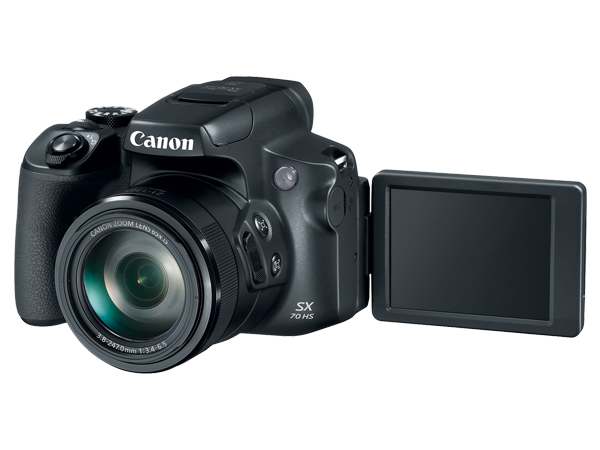

3.0-inch TFT Color Vari-angle LCD with wide viewing angle (4:3) |
| LCD Pixels |
Approx. 920,000 dots |
| LCD Coverage |
Approx. 100% |
Aperture and Shutter
| Maximum Aperture |
f/3.4 (W), f/6.5 (T) |
| Shutter Speed |
1-1/2000 sec |
| 15-1/2000 sec. (in all shooting modes) |
Exposure Control
| Sensitivity |
Auto*,ISO100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200 |
| (When in P mode)/6400 (When in Low Light mode) |
| *Optimal ISO speed is automatically set depending on the shooting mode |
| Light Metering Method |
Evaluative*, Center-weighted average, Spot** |
| *1 Facial brightness is evaluated (Face Detect AE) in Face Detect. |
| *2 Fixed to Center, linked to AF frame |
| Exposure Control Method |
Manual Exposure, Program Shift, Safety Shift, AE Lock |
| Exposure Compensation |
Still Images: ±3 stops in 1/3-stop increments |
| Videos: ±2 stops in 1/3-stop increments (not available during shooting) |
White Balance
| White Balance Control |
Auto*, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Custom 1, Custom 2, Multi-area White Balance, White Balance Correction |
Flash
| Built-in Flash |
Auto, Flash On, Slow Synchro, Flash Off |
| Facial brightness is also evaluated in Face Detect. |
| Flash Range |
1.6 ft. (50 cm) – 18 ft. (5.5 m) (W), 5.9 ft. (1.8 m) – 9.8 ft. (3.0 m) (T) |
| Recycling Time |
10 sec. or less (Battery voltage: 3.7 V) |
| Flash Exposure Compensation |
±2 stops in 1/3-stop increments |
Shooting Specifications
| Shooting Modes |
M |
| Av, Tv |
| P, Auto |
| Standard |
| Vivid, Neutral, B/W, Sepia |
| Photo Effects |
My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color * |
| *Adjustment of contrast sharpness, saturation, red, green, blue and skin tone are available |
| Self Timer |
Off / 2 sec. / 10 sec. |
| Custom |
| Wireless Control |
Built-in Wi-Fi® and Bluetooth® |
| Continuous Shooting |
High-speed Continuous Shooting in One-Shot AF mode: Approx. 10.0 shots/sec. |
| Low-speed Continuous Shooting in One-Shot AF mode: Approx. 3.0 shots/sec. |
| High-speed Continuous Shooting in Servo AF mode: Approx. 5.7 shots/sec. |
| Low-speed Continuous Shooting in Servo AF mode: Approx. 3.0 shots/sec.
Continuous shooting speed may become slower due to the following factors: Tv value, Av value, subject conditions, shooting environment, use of flash, ISO speed, zoom position. |
Image Storage
| Storage Media |
SD/SDHC/SDXC and UHS-I Memory Cards |
| File Format |
Design rule for Camera File system, DPOF (Version 1.1) compliant |
| Image Recording Format |
Fine / Normal |
| JPEG Compression Mode |
Still Image: Exif. 2.3 (JPEG), RAW (12 bit, CR2 (Canon Original)) |
| Video: MP4 (Image: MPEG-4 AVC/H.264; Audio: MPEG-4 AAC-LC (Stereo)) |
| Number of Recording Pixels |
Still Images: |
| 1) 16:9 – Large: 4608 x 2592; Medium 1: 3264 x 1832; Medium 2: 1920 x 1080; Small: 640 x 360 |
| 2) 3:2 – Large: 4608 x 3072; Medium 1: 3264 x 2176; Medium 2: 2048 x 1368; Small: 640 x 424 |
| 3) 4:3 – Large: 4608 x 3456; Medium 1: 3264 x 2448; Medium 2: 2048 x 1536; Small: 640 x 480 |
| 4) 1:1 – Large: 3456 x 3456; Medium 1: 2448 x 2448; Medium 2: 1536 x 1536; Small: 480 x 480 |
| 5) 4:5 – Large: 2768 x 3456; Medium 1: 1952 x 2448; Medium 2: 1232 x 1536; Small: 384 x 480Videos |
| Full HD 1920 x 1080: 60 fps*3 / 30 fps*2 |
| Full HD iFrame Movie HD 1920 x 1080: 30 fps*2 |
| HD 1280 x 720: 30 fps*2 |
| 640 x 480: 30 fps*2 |
| Super Slow Motion Movie 640 x 480: 120 fps*1 |
| Super Slow Motion Movie 320 x 240: 240 fps*1 |
| Miniature Effect for Movie 1280 x 720: 6 fps*1 / 3 fps*1 / 1.5 fps*1 |
| Miniature Effect for Movie: 640 x 480: 6 fps*1 / 3 fps*1 / 1.5 fps*1 |
| Digest Movie: 1280 x 720: 30fps*2*1 Playback frame rate is 30 fps*2. |
| *2 Actual frame rate is 29.97 fps. |
| *3 Actual frame rate is 59.94 fps. |
Playback Specifications
| Playback Modes File |
Protect, Rotate, Movie compression, Slideshow, Rating, Movie Playback, Highlight Alert, Movie Frame Grab*, Resize**, Cropping**, Tilt Correction**, Red-Eye Correction** |
* 4K movies only.
** Applicable only to images taken with the same model. |
Interfaces
| Video Out |
HDMI (Type D) |
| Audio Out |
Stereo |
| Other |
Hi-Speed USB (Micro); direct connection to Canon SELPHY, PIXMA Photo Printers & PictBridge compatible printers |
| Power Source |
Battery Pack LP-E12 |
| Shooting Capacity |
Number of still image shots (CIPA compliant):
Screen ON: Approx. 325 shots
Electronic color viewfinder On: Approx. 255 shots
Screen ON: Approx. 405 shots in ECO ModeVideo Recording Time (CIPA compliant):
Screen ON: Approx. 85 min.
Electronic color viewfinder On: Approx. 75 min. |
| Playback Time |
Approx. 6 hours |
All the data above is based on Canon’s testing standards and CIPA (Camera & Imaging Products Association) testing standards and guidelines.
Dimensions and weight listed above are based on CIPA Guidelines (except weight for camera body only).
Product specifications and the exterior are subject to change without notice.
